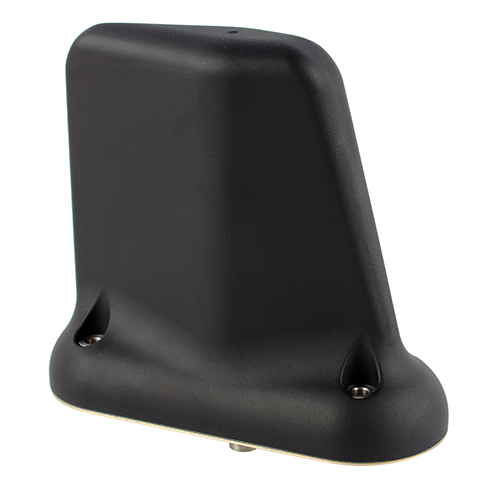

Police GSM/Cellular/UHF Airborne Omni Blade Antenna | 820—990 MHz, Black

Police GSM/Cellular/UHF Airborne Omni Blade Antenna | 820—990 MHz, Black

MATTERWAVES

Call For Pricing
Available to order
EDMO # B58286XT4
MFR Part # MAT-B5-0.82-0.86-XT4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This police GSM/Cellular/UHF airborne omni blade antenna operates on the frequency range of 820 MHz — 990 MHz and has a 250 watt power handling capacity. Painted lusterless black #37038 per FED-STD-595B.



Features

  • 820 MHz — 990 MHz frequency range
  • 250W power handling
  • 70,000 ft altitude range

Specifications

  • Weight:
    11 oz (312 g) Dimensions: 2.062 x 5.25 x 4.721 in (52 x 133 x 120 mm) Frequency Range: 820 MHz — 990 MHz Pattern: omni directional Polarization: vertical Antenna Gain: +2.4 dB VSWR: 2.0:1 Output Impedance: 50Ω Power Handling: 250 watts Lightning Protection: DC Grounding Finish: Skydrol resistant polyurethane enamel base iridite per MIL-C-5441F Material: 6061-T6 aluminum alloy base composite radome (impact, abrasion, UV, solvent, skydrol resistance, and fire retardant) Connector: TNC female Temperature Range: -71°F to 203°F (-57°C to 95°C) Altitude: 70,000 ft Vibration: 14 G's Leakage: hermetically sealed Federal & Military Specifications: TSO C169A, C37b, C38b, C144, DO-160D, DO-228, MIL-STD-810, MIL-S-901D, MIL-STD-167-1A, SAE J1455

Product Codes

  • Mfr Part No
    MAT-B5-0.82-0.86-XT4
  • SCHEDULE B CODE
    8529.10.4040
