CI 110-60-30 DME Transponder Blade Antenna | 960–1220 MHz, C Connector, Open Circuit

Product Description

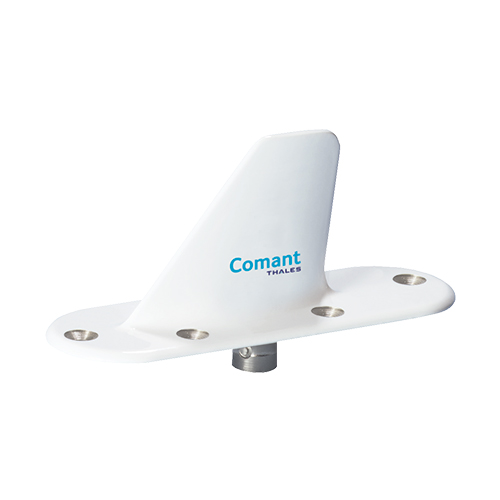

The CI 110-60-30 DME transponder blade antenna (EDMO# CI-1106030) is an all metal, low profile antenna designed for business jet and commercial high speed aircraft. With a popular six hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders. Tough, one-piece construction provides 175 lbs. side load capability, guarding against breakage from ground equipment. Moisture failure is prevented with completely sealed construction.

Specifications

• Specification
  Weight: 0.25 lb
• Height:
  2.25 in
• Frequency:
  960–1220 MHz
• VSWR:
  1.5:1 maximum
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance (RF):
  50 Ω
• Resistance DC:
  Open Circuit
• Power (RF):
  3.0 KW Peak / 100 watt average
• Temperature:
  -55ºC to +85ºC
• Altitude:
  55,000 ft
• Certifications:
  FAA TSO C66c, C74c, C112 (Class 1A), DO-160D

Product Codes

• Mfr Part No
  CI-110-60-30
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66c,C74c,C112
