Map Light 4 FAA-PMA Cessna Certified LED Maplight | Blue, 12V, Panel Mount

Product Description

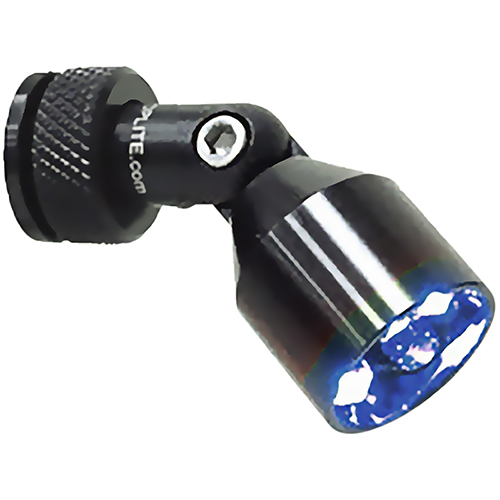

The MAP 4 series panel mountable LED map light is FAA-PMA certified for use in Cessna aircraft and features four, dimmable LEDs for providing just the right amount of light for operational tasks. This task light is is available in four colors: green, red, blue, and white. It is easy to install and is fully-adjustable in two directions. Also, the MAP 4 map light is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.

This MAP4 series (EDMO# MAP4-B12) is Cessna certified, features blue lighting, operates on a 12-volt power supply, and has a lamp head diameter of 0.80 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  0.80 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  Blue
• Input Voltage:
  12 V
• Mounting Hole:
  15/32 in thru hole
• Approvals:
  FAA-PMA for Cessna aircraft

Product Codes

• Mfr Part No
  MAP4-B12
• ECCN
  9A991.B
• SCHEDULE B CODE
  9405.40.0000
