Map Light 4 Gooseneck Cessna Certified LED Maplight | White, 24V, Panel Mount

Product Description

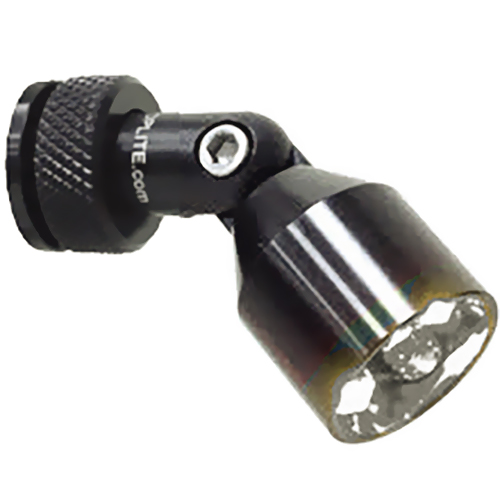

The MAP 4 series panel mountable LED maplight is FAA-PMA certified for use in Cessna aircraft and features four LEDs for providing the right amount of light for operational tasks. This task light is is available in  four colors: green, red, blue, and white. It is easy to install and the gooseneck shaft allows for fully-adjustability in multiple directions. Also, the MAP 4 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.


This MAP4 series (EDMO# MAP4-W24) is Cessna certified, features white lighting, operates on a 24-volt power supply, and has a lamp head diameter of 0.80 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  0.80 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  white
• Input Voltage:
  12 volt
• Mounting Hole:
  15/32 in thru hole
• Approvals
  : FAA-PMA for Cessna aircraft

Product Codes

• Mfr Part No
  MAP4-W24

Documentation

• Oplite datasheet
