Map Light 6 FAA-PMA Cessna Certified LED Maplight | White, 24V, Panel Mount

Product Description

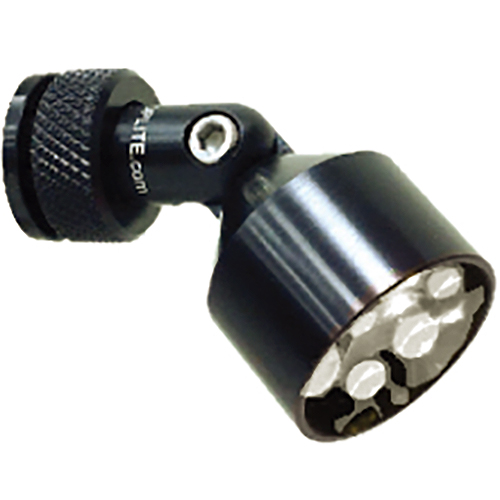

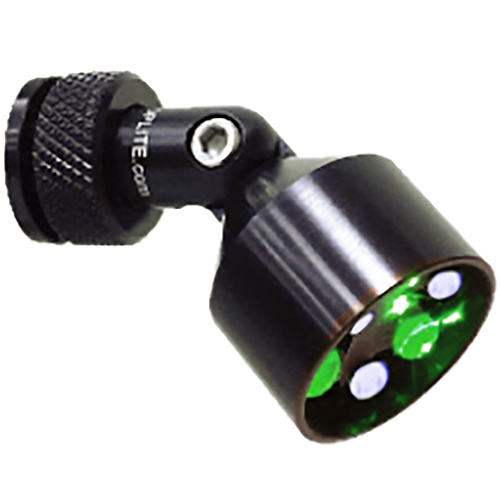

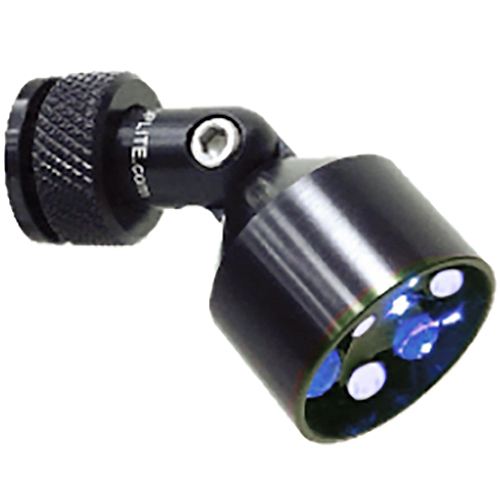

The MAP 6 series panel mountable LED maplight is FAA-PMA certified for use in Cessna aircraft and features six LED lamp with a 20,000 hour life. This map light is available several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. It is easy to install and is fully-adjustable in two directions. Also, the MAP 6 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.

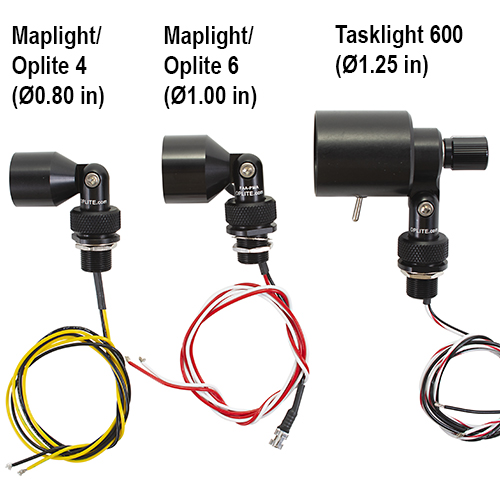

This MAP6 series (EDMO# MAP6-W24) is Cessna certified, features white lighting, and operates on a 24-volt power supply, and has a lamp head diameter of 1.00 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  1.00 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  white
• Input Voltage:
  24 volt
• Mounting Hole:
  15/32 in thru hole
• Approvals:
  FAA-PMA for Cessna aircraft

Product Codes

• Mfr Part No
  MAP6-W24
• ECCN
  9A991.B
• SCHEDULE B CODE
  9405.42.0000

Documentation

• Oplite datasheet
