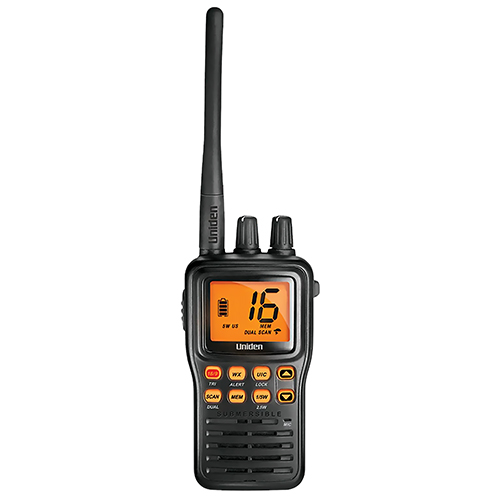

MHS 75 Submersible Handheld VHF Radio

Product Description

The MHS 75 VHF marine radio is a submersible, two-way radio that meeting the rigorous JIS8 standards while including a number of convenience features, such as memory channel scan and 12-hour battery life. This VHF radio features a selectable transmit power output ranging from 1, 2.5, and 5 watts. The MHS 75 marine radio covers all USA, Canadian, and international marine channels, as well as all N.O.A.A weather receive and alert channels.

Specifications

• Weight:
  10.2 oz (290 g) (w/battery and antenna) Dimensions (without antenna): 4.57 x 2.49 x 1.53 in (116.2 x 63.3 x 39 mm) Channels: All US/International/Canada marine channels 10 Weather channels Frequency Control: PLL Frequency Tolerance: Transmit: 1.5 PPM (@25°C) Receive: 1.5 PPM (@25°C) Operating Temperature: -4°F to 122°F (-20°C to 150°C) Antenna Type: flexible whip Microphone Type: built-in electret type Display: LCD Speaker : 8Ω @ 0.5W Power Source: 7.4V 1040 mAh, rechargeable lithium-ion battery Transmitter: Frequency Range: 156 MHz ~ 158 MHz Frequency Stability: ±10 PPM Power Output: 1.0W, 2.5W, 5W Spurious Emissions: 70 dBc Current Drain: 1,400 mA (5W) Receiver Type: Double Conversion Super Heterodyne Phase Locked Loop system for Local Oscillator Frequency Range: 156 MHz ~ 164 MHz Sensitivity: 0.20 μV for 12dB SINAD Squelch Sensitivity Threshold: 0.12 μV Audio Frequency Response: +5 dB @ 500 Hz; -6 dB @ 2000Hz Adjacent Channel Selectivity: 75 dB @ ±25 kHz Audio Output Power: 0.4 W @10% THD Current Drain Squelched: 55 mA; Max. Audio: 210 mA

Product Codes

• Mfr Part No
  MHS75
• SCHEDULE B CODE
  9999.99.9999
