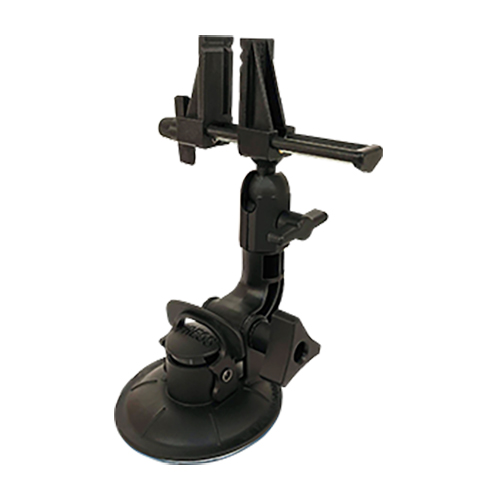

Vacuum Base PanaVise Jr | 210° Tilt, 360° Turn, 360° Rotation

Vacuum Base PanaVise Jr | 210° Tilt, 360° Turn, 360° Rotation

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL209
MFR Part # 209
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Vacuum Base PanaVise Jr (EDMO# MODEL209) is ideal for light-duty field repairs, electronics, hobbies, and more. It attaches securely to any smooth, flat, non-porous surface via a lever that locks the pad into place. It is the most portable precision vise you will ever own!

Features

  • The easy-to-use single knob controls head movement through 3-planes: 210° Tilt, 360° Turn, & 360° Rotation
  • Adjusting knob controls jaw pressure for delicate work
  • Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic
  • Positive indents control movement to prevent "flopping" and the control knob locks the arm firmly in place
  • Lever locks vacuum pad into place on any smooth, flat, non-porous surface; lift tab to release vise from surface

Specifications

  • Weight:
    0.8 lbs (0.4 kg)
  • Height:
    7.5 in (173 mm)
  • Base Diameter:
    3.4 in (86.4 mm)
  • Arm Movement:
    140°
  • Jaw Height:
    2 in (50.8 mm)
  • Jaw Width:
    1 in (25.4 mm)
  • Jaw Opening:
    2.875 in (73 mm)
  • Continuous Heat Tolerance:
    350°F (177°C)
  • Intermittent Heat Tolerance:
    450°F (204°C)

Related Products

Product Codes

  • Mfr Part No
    209
  • SCHEDULE B CODE
    8203.20.6060
