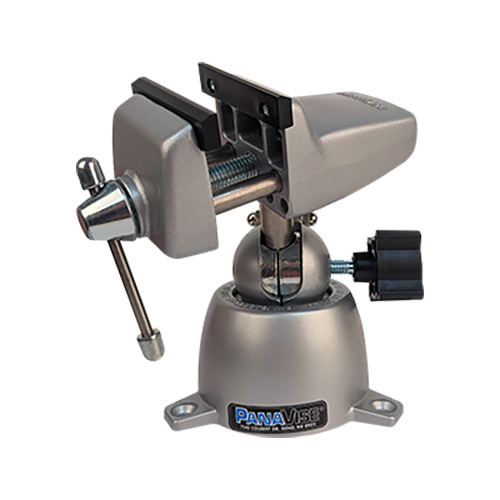

Standard Tabletop PanaVise | 90° Tilt, 360° Turn, 360° Rotation

Standard Tabletop PanaVise | 90° Tilt, 360° Turn, 360° Rotation

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL301
MFR Part # 301
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

All PanaVise vises and work holding tools have a "lifetime warranty" and the 300 series vises have interchangeable components. You can easily add a Base Mount or another Head. The Standard Tabletop PanaVise (EDMO# MODEL301) is  known around the world as a work holding tool for hobbies, electronics, small home repairs, and workbench environments. It consists of the standard head and the standard base. It's the original small vise!

Features

  • Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
  • Nylon jaws offer excellent electrical insulation and gentle holding power
  • Base accepts all 300 series Heads and any 5/8 in (15.9 mm) diameter post
  • Base features 4.3125 in (109.5 mm) bolt circle countersunk for three 1/4 in (6.3 mm) flat-head screws (not included)

Specifications

  • Weight:
    2.7 lbs (1.2 kg)
  • Height:
    6.25 in (171.4 mm)
  • Jaw Height:
    0.5 in (12.6 mm)
  • Jaw Width:
    2.5 in (63.5 mm)
  • Jaw Opening:
    2.25 in (57.1 mm)
  • Continuous Heat Tolerance:
    200°F (93°C)
  • Intermittent Heat Tolerance:
    300°F (149°C)

Related Products

Product Codes

  • Mfr Part No
    301
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
