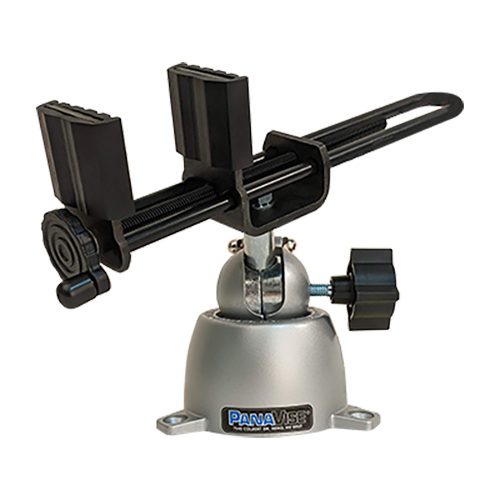

PanaVise Wide Opening Head Vise | 90° Tilt, 360° Turn, 360° Rotation

PanaVise Wide Opening Head Vise | 90° Tilt, 360° Turn, 360° Rotation

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL396
MFR Part # 396
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

All PanaVise vises and work holding tools have a "lifetime warranty". The Wide Opening Head Vise (EDMO# MODEL396) consists of the wide opening head and the standard base. It is the working tool with expanded capabilities! The patented "split ball" allows the head to tilt, turn and rotate and position your work anywhere you want it.

Features

  • Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects
  • Reverse the pads and the wide "V" holds delicate cylindrical objects
  • Remove jaw pads from steel jaws when working with high heat
  • Single control knob controls head movement through 3-planes: 90° Tilt, 360° Turn, & 360° Rotation
  • Base accepts all 300 series Heads and any 5/8 in (15.9 mm) diameter shaft
  • Base features 4.3125 in (109.5mm) bolt circle countersunk for three 1/4 in (6.3mm) flat-head screws (not included)

Specifications

  • Overall Weight:
    3.0 lbs (1.4 kg)
  • Overall Height:
    7.3125 in (185.7 mm)
  • Base Weight:
    1.4 lbs (0.6 kg)
  • Base Height:
    3.75 in (95.2 mm)
  • Head Weight:
    1.6 lbs (0.7 kg)
  • Head Height:
    5.125 in (130.2 mm)
  • Head Length:
    11 in (279.4 mm)
  • Jaw Pad Dimensions:
    1.875 x 1.5 in (47.6 x 38.1 mm)
  • Jaw Opening:
    6 in (152.4 mm) with pads, 6.25 in (158.8 mm) without pads

Related Products

Product Codes

  • Mfr Part No
    396
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
