Oplite 4 LED Maplight | Green, 24V, Panel Mount

Product Description

The Oplite 4 series panel mountable LED maplight features four LEDs for providing the right amount of light for operational tasks. This task light is is available in  four colors: green, red, blue, and white. It is easy to install and fully-adjustable in two directions. Also, the Oplite 4 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.

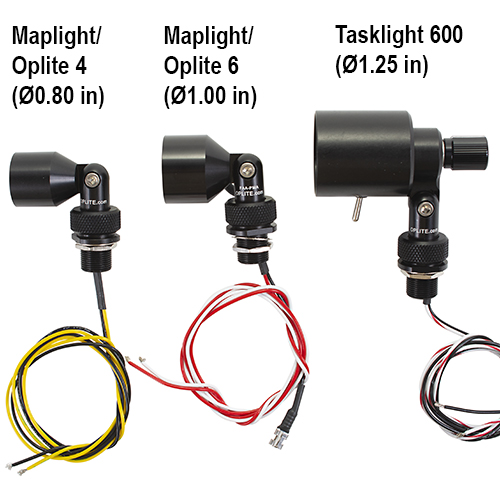

This Oplite 4 series (EDMO# OP4-G24) features green lighting, operates on a 24-volt power supply, and has a lamp head diameter of 0.80 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  0.80 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  green
• Input Voltage:
  24 volt
• Mounting Hole:
  15/32 in thru hole

Product Codes

• Mfr Part No
  OP4-G24

Documentation

• Oplite datasheet
