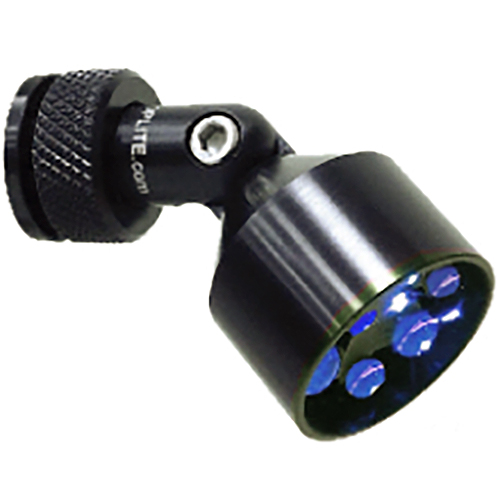

Oplite 6 LED Maplight | Blue, 12V, Panel Mount

Product Description

The Oplite 6 map light features six LED lamp with a 20,000 hour life. This map light is available several configurations: all green, all red, all white, and all blue lighting; or with three white lamps and three green, red, white, or blue lamps. The Oplite 6 is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.


This Oplite 6 series (EDMO# OP6-B12) features blue lighting, operates on a 12-volt power supply,, and has a lamp head diameter of 1.00 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  1.00 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  blue
• Input Voltage:
  12 volt
• Mounting Hole:
  15/32 in thru hole

Product Codes

• Mfr Part No
  OP6-B12

Documentation

• Oplite datasheet
