Oplite 6 LED Maplight | Red, 12V, Panel Mount


OPLITE

EDMO#: OP6-R12

MFR#: OP6-R12

Description

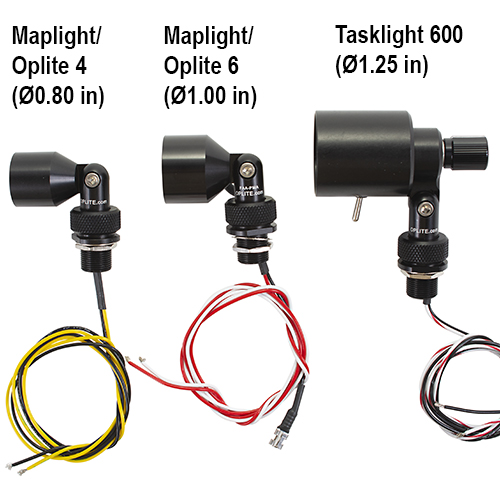

The Oplite 6 map light features six LED lamp with a 20,000 hour life. This map light is available several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. The Oplite 6 is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.

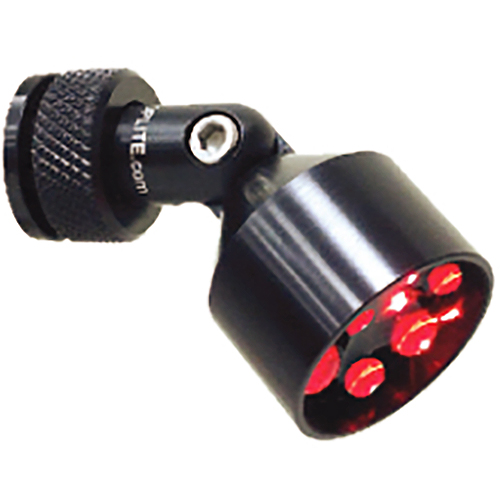

This Oplite 6 series (EDMO# OP6-R12) features red lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.

Features

  • 20,000 hour LED lamp life
  • Fully adjustable in two directions
  • Surface mountable
  • MIL-SPEC Anodized construction
  • Precision CNC machined
  • Compatible with all dimming systems
  • Available in four color or combinations of green, red, blue, or white

Specifications

Installed Height:
2.125 in (at 90° position)

Lamp Diameter:
1.00 in

Thread:
15/32-32 x 0.45 in

Color:
red

Input Voltage:
12 volt

Mounting Hole:
15/32 in thru hole

Product Codes

Mfr Part No :

OP6-R12
