Oplite 6 Multi-Color LED Maplight | White/Red, 24V, Panel Mount

Product Description

The Oplite 6 map light features six LED lamps with a 20,000-hour life. This map light is available in several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. The Oplite 6 is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA-approved protocols for quality.

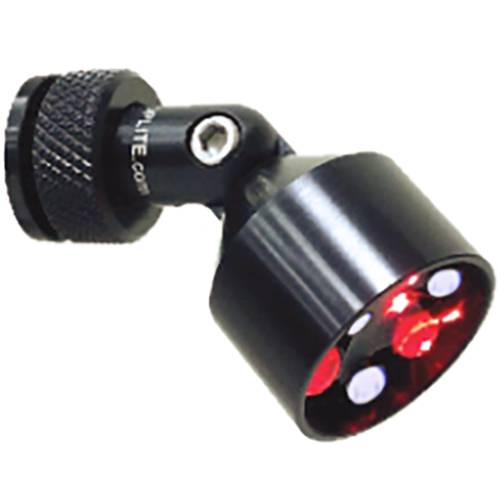

This Oplite 6 series (EDMO# OP6-W/R24) features white & red lighting, operates on a 24-volt power supply, and has a lamp head diameter of 1.00 inch.

Specifications

• Installed Height:
  2.125 in (at 90° position)
• Lamp Diameter:
  1.00 in
• Thread:
  15/32-32 x 0.45 in
• Color:
  White/red
• Input Voltage:
  24 V
• Mounting Hole:
  15/32 in thru hole

Product Codes

• Mfr Part No
  OP6-W/R24
• ECCN
  9A991.B
• SCHEDULE B CODE
  8803.30.0100

Documentation

• Oplite datasheet
