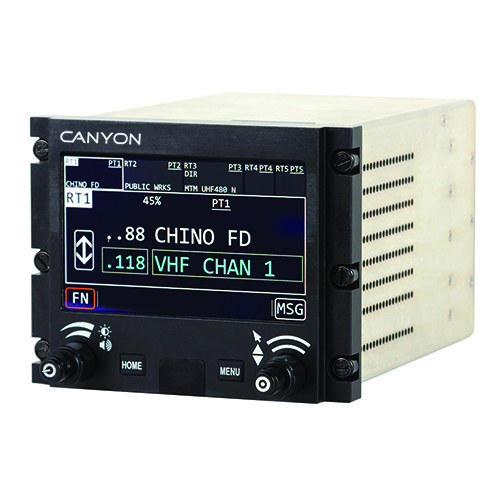

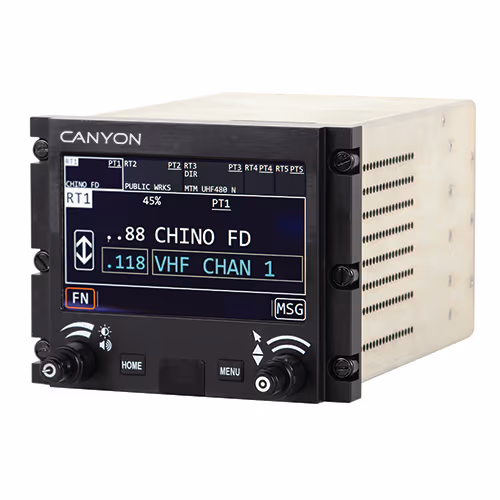

RT-7000 Panel Mount Tactical Radio | 3 APX Modules, VHF, UHF, 7/800, NVIS-B Bezel, P25 Phase 1 and 2 Trunking, Multikey AES/DES/DES-XL/DES-OFB, and OTAR, FCC Narrowband
CANYON AEROCONNECT
EDMO#: RT7P72717
MFR#: RT7000PMR-007-002-0007-0017
Description
The RT-7000 Panel Mount Tactical Radio satisfies all public safety and para-public voice communications needs. This unit supports 29.7 MHz to 960 MHz communications with up to three embedded and individual channels, thus providing the equivalent of three individual radios with the ability to support up to two external handheld radios. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
The RT-7000 is a software-defined device which can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. This unit is equipped with an integrated audio and radio control display. All audio and radio functions can be controlled using either the touchscreen display or the dual concentric front panel knobs.
This variant of the RT-7000 panel mount tactical radio (EDMO# RT7P72717) includes 3 APX modules, All VHF, UHF, 7/800, NVIS-B Bezel, P25 Phase 1 and 2 Trunking, Multikey AES/DES/DES-XL/DES-OFB, and OTAR, FCC Narrowband.
Features
- Supports 29.7 to 960 MHz communications with three embedded and individual channels, ATC communications, P-25 Phase 1 & 2 digital modulation, trunking, SmartZone, and SmartNet
- Flight tunable - including P-25 frequency and NAC data
- Touchscreen color LCD display with programmable day/night backlighting including MIL STD 3009 NVIS
- Single port antenna interface; compatible with RT-5000 antennas
- Programmable preset channels (up to 1000)
- Programmable scan patterns
- Embedded simulcast and relay operations
- TSO/ETSO for Comm and display
- Multikey FIPS-140-2 encryption
Specifications
Weight:
8.5 lb (3.85 kg), maximum
Dimensions:
7 x 5.75 x 4.38 in
Voltage requirements:
27.5 VDC ±20%
Temperature:
-4°F to 131°F (-20°C to 55°C)
Channeling:
6.25/8.33/12.5/25 kHz
Certification:
TSO/ETSO 169a ATC COM & C113 Display
Frequency range:
AM/FM analog 29.7-960 MHz, including bands:
30 - 50 MHz LMR
30 - 88 MHz military
87.5 - 108 MHz FM broadcast
108 - 118 MHz VOR voice
118 - 154 ATC and Civil Air Patrol
136 - 174 MHz LMR
156 - 174 MHz Maritime
225 - 400 MHz Military
380 - 520 MHz LMR
764 - 960 MHz LMR
Transit Power:
ATC COMS: 4W, minimum
AM: 4W, minimum
FM: 10W, minimum
P-25: VHF - 6W, UHF - 5W, 700/800 MHz - 3W
APCO P-25:
All P-25 Bands - Conventional Common Air Interface (CAI), Phase I, II Trunking, Analog Trunking (SmartZone, SmartNet)
Encryption:
FIPS 140-2, Level 2/3
P-25 AES & DES
Analog DES, DES-XL, DVP
P-25 OTAR
Multikey
Product Codes
Mfr Part No :
RT7000PMR-007-002-0007-0017
