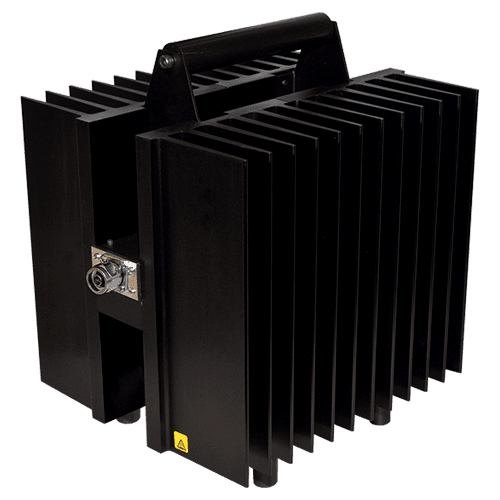

1000-A Series RF Attenuator | 1000 Watt, Uni-Directional

1000-A Series RF Attenuator | 1000 Watt, Uni-Directional

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 1000AFFN30

MFR Part # 1000-A-FFN-30

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

1000-A Series, 1000 Watt RF Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

This 1000-A Series RF Attenuator (EDMO# 1000AFFN30) has N(Female) to N(Female) connectors with an attenuation value of 30 dB.

Features

Self cooling design, needs no cooling plate
Frequencies up to 2.4 GHz
Fully shielded against production of extraneous radiation
Attenuator require no AC power
Rugged construction
Broadband operation
Other attenuation values may be available upon request
Models to cover all LTE frequencies

Specifications

Weight:

26.5 lb (12.0 kg)
Dimensions:

13.6 x 12.8 x 9.6 in (346 x 326 x 244 mm)
Power Rating:

1000 W
Connections:

N(Female) to N(Female)
Frequency Range and VSWR:

1.10:1 from DC to 1 GHz 1.25:1 from 1 to 2.4 GHz
Coolant Method:

Dry, Convection Cooled
Impedance:

50 Ω
Operating Position:

Any
Operating Temperature:

-40°F to 104°F (-40°C to 40°C)
PIM:

-110 dBc (min)
AC Power:

None
Humidity:

95% Non-condensing
Attenuation Value:

30 dB

Product Codes

Mfr Part No

1000-A-FFN-30
SCHEDULE B CODE

9033.00.0000
