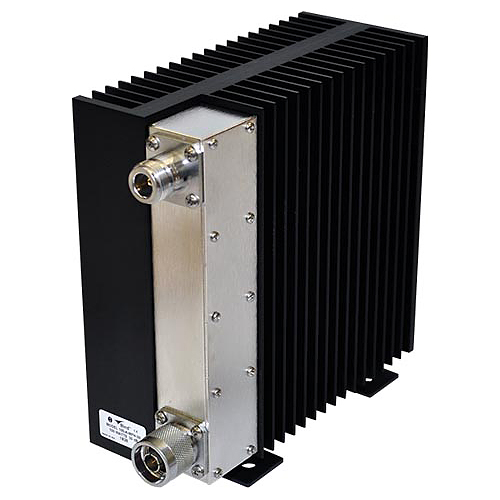

100-A Series RF Attenuator | 100 Watt, Bi-Directional

100-A Series RF Attenuator | 100 Watt, Bi-Directional

BIRD ELECTRONICS

Call For Pricing
Available to order
EDMO # 100AMFN30
MFR Part # 100-A-MFN-30
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

100-A Series, 100 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

This 100-A Series RF Attenuator (EDMO# 100AMFN30) has N(Male) to N(Female) connectors with an attenuation value of 30 dB.

Features

  • Self cooling design, needs no cooling plate.
  • Frequencies up to 3 GHz.
  • Fully shielded against production of extraneous radiation.
  • Attenuator require no AC power.
  • Rugged construction.
  • Broadband operation.
  • Other attenuation values may be available upon request.
  • Models to cover all LTE frequencies.

Specifications

  • Weight:
    3.6 lb (1.63 kg)
  • Dimensions:
    7.3 x 2.6 x 6.4 in (186 x 67 x 163 mm)
  • Power Rating:
    100 W
  • Connections:
    N(Male) to N(Female)
  • Frequency Range and VSWR:
    1.10:1 from DC to 1 GHz 1.25:1 from 1 to 3.0 GHz
  • Coolant Method:
    Dry, Convection Cooled
  • Impedance:
    50 Ω
  • Operating Position:
    Any
  • Operating Temperature:
    -40°F to 104°F (-40°C to 40°C)
  • PIM:
    -110 dBc (min)
  • AC Power:
    None
  • Humidity:
    95% Non-condensing
  • Attenuation Value:
    30 dB

Related Products

Product Codes

  • Mfr Part No
    100-A-MFN-30
  • ECCN
    EAR99
  • SCHEDULE B CODE
    9033.00.0000
