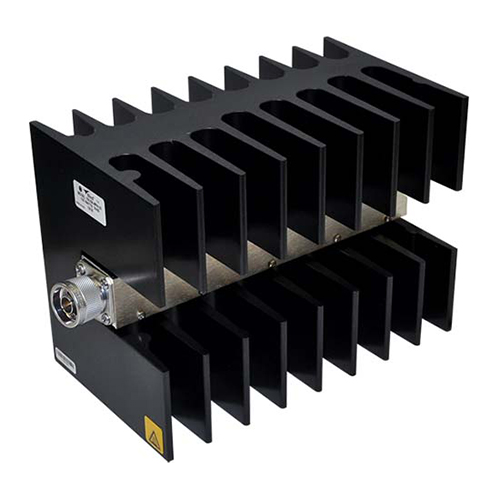

150 Watt RF Power Attenuator | 30dB, Male/Female

150 Watt RF Power Attenuator | 30dB, Male/Female

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 150SAMFN30

MFR Part # 150-SA-MFN-30

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

150-SA Series, 150 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

This 150 Watt RF Power Attenuator (EDMO# 150SAMFN30) has a 30dB attenuation with male to female connections.

Features

Self cooling design, needs no cooling plate
Frequencies up to 2.4 GHz
Fully shielded against production of extraneous radiation
Attenuator require no AC power
Rugged construction
Broadband operation
Other attenuation values may be available upon request
Models to cover all LTE frequencies

Specifications

Weight:

5.5 lbs (2.5 kg)
Dimensions:

9.1 x 4.0 x 5.0 in (232 x 102 x 127 mm)
Coolant Method:

Dry, Convection Cooled
Impedance:

50 Ohm
Operating Position:

Any
PIM:

-110 dBc Min
Attenuation:

30 dB
Connector Gender:

Male/Female
Connector Type:

N Connector
AC Power:

None
Ambient Temperature:

-40°F to 104°F (-40°C to 40°C)
Humidity:

95% max (non-condensing)
Finish:

Black Anodized Aluminum

Product Codes

Mfr Part No

150-SA-MFN-30
SCHEDULE B CODE

9033.00.0000
