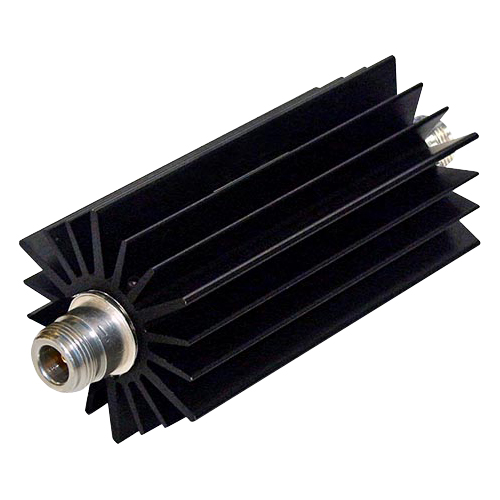

25 Watt RF Power Attenuator | 20 dB, DC to 4 GHz, 50 Ω, Female/Female

Product Description

25 Watt Convection-Cooled RF Attenuators provide reliable signal reduction for RF professionals working with higher-power systems. Designed for use in test environments, system protection, and signal isolation, these attenuators feature robust construction, passive self-cooling, and full shielding to prevent unwanted radiation. With conservative power ratings and broadband capability, the 25 Watt Series helps maintain measurement integrity and component safety without the need for external power or active cooling.

This 25 Watt RF Power Attenuator (EDMO# 25-A-FFN20) has a 20dB attenuation, DC to 4 GHz frequency range, and 50 Ω impedance with female to female connections.

Specifications

• Weight:
  1.0 lbs (454 g)
• Dimensions:
  6.4 x 2.3 in (163 x 59 mm)
• Power Rating:
  25 W
• Attenuation:
  20 dB
• VSWR and Frequency Range :
  1.10:1 from DC to 1 GHz 1.25:1 from 1 to 4.0 GHz
• Coolant Method:
  Dry, Convection Cooled
• Impedance:
  50 Ω
• Operating Position:
  Any
• PIM:
  -110 dBc Min
• Connector Gender:
  Female/Female
• Connector Type:
  N Connector
• Ambient Temperature:
  -40°F to 104°F (-40°C to 40°C)
• Humidity:
  95% max (non-condensing)
• Finish:
  Black Anodized Aluminum

Product Codes

• Mfr Part No
  25-A-FFN-20
• SCHEDULE B CODE
  8203.20.6060
