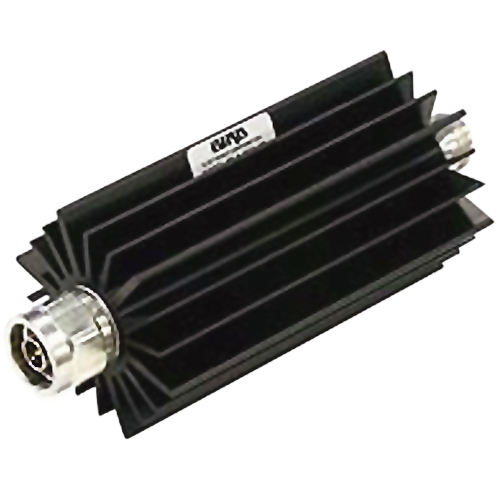

Bi-Directional RF Attenuator | 25 watt

Product Description

The 25-A series bi-directional, 25-watt RF power attenuators provide reliable power reduction for isolating components under test conditions and providing harmonic signal analysis for comparison standards. These attenuators boast of high-quality, robust construction, and conservative power ratings.

Specifications

• Weight:
  9 oz (256 g)
• Dimension:
  5.3 x 2.3 in (135 x 59 mm)
• Power Rating:
  25 watt
• Connector:
  SMA, BNC, 7/16 DIN, N, TNC
• VSWR:
  1.10:1 1.25:1
• Frequency Range:
  DC – 1 GHz 1 – 4 GHz
• Coolant Method:
  Dry, convection cooled
• Impedance:
  50Ω
• Ambient Temperature:
  -40°C to 40°C
• PIM:
  -110 dBc, minimum
• Humidity:
  95%, non-condensing
• Finish:
  Black anodized aluminum

Product Codes

• Mfr Part No
  25A-MFN-40

Documentation

• Convection could attenuator datasheet
