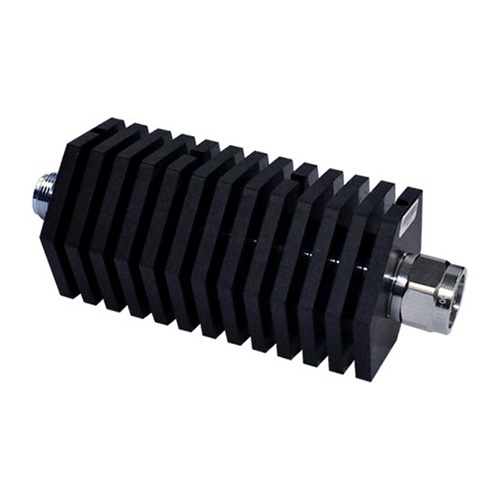

50 Watt RF Power Attenuator | 10dB, Male/Female

50 Watt RF Power Attenuator | 10dB, Male/Female

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 50AMFN10

MFR Part # 50-A-MFN-10

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

50-A Series, 50 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

This 50 Watt RF Power Attenuator (EDMO# 50AMFN10) has a 10dB attenuation with male to female connections.

Features

Self cooling design, needs no cooling plate.
Frequencies up to 3 GHz.
Fully shielded against production of extraneous radiation.
Attenuator require no AC power.
Rugged construction.
Broadband operation.
Other attenuation values may be available upon request.
Models to cover all LTE frequencies.

Specifications

Specification

Weight: 1.0 lbs (454 g)
Dimensions:

6.4 x 2.3 in (163 x 59 mm)
Frequency Range and VSWR:

1.10:1 from DC to 1 GHz 1.25:1 from 1 to 3.0 GHz
Coolant Method:

Dry, Convection Cooled
Impedance:

50 Ohm
Operating Position:

Any
PIM:

-110 dBc Min
Attenuation:

10 dB
Connector Gender:

Male/Female
Connector Type:

N Connector
AC Power:

None
Ambient Temperature:

-40°F to 104°F (-40°C to 40°C)
Humidity:

95% max (non-condensing)
Finish:

Black Anodized Aluminum

Product Codes

Mfr Part No

50-A-MFN-10
SCHEDULE B CODE

9033.00.0000
