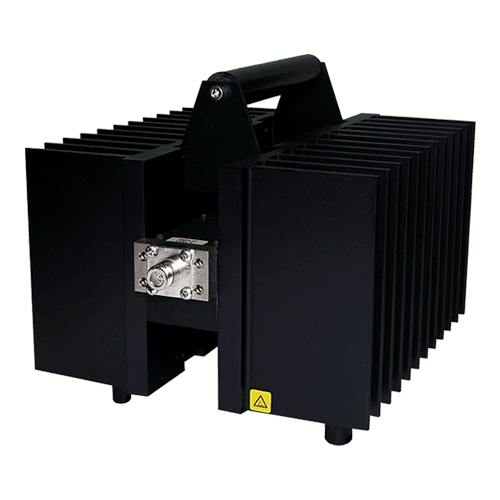

600 Watt RF Power Attenuator | 30 dB, Female/Female Attenuator

600 Watt RF Power Attenuator | 30 dB, Female/Female Attenuator

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 600-AFFN30

MFR Part # 600-A-FFN-30

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

600-A Series, 600 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

This 600 Watt RF Power Attenuator (EDMO# 600-AFFN30) has a 30dB attenuation with female to female connections.

Features

Self cooling design, needs no cooling plate
Frequencies up to 2.4 GHz
Fully shielded against production of extraneous radiation
Attenuator require no AC power
Rugged construction
Broadband operation
Other attenuation values may be available upon request
Models to cover all LTE frequencies

Specifications

Weight:

21.5 lb (9.8 kg)
Dimensions:

12.7 x 9.4 x 9.6 in (323 x 239 x 244 mm)
Power Rating:

600 W
Connector:

N
Frequency Range and VSWR:

1.10:1 from DC to 1 GHz 1.25:1 from 1 to 2.4 GHz
Coolant Method:

Dry, Convection Cooled
Impedance:

50 Ω
Operating Position:

Any
Temperature:

-40 to 40°C (-40 to 104°F)
PIM:

-110 dBc min
AC Power:

None
Humidity:

95% (Non-condensing)
Standard Attenuation Values:

3, 6, 10, 20, 30 dB
Finish:

Black Anodized Aluminum

Product Codes

Mfr Part No

600-A-FFN-30
SCHEDULE B CODE

9033.00.0000
