SiteHawk General Purpose RF Test Kit | SK-6000-TC

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # 7003A00156

MFR Part # 7003A001-5-6

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Bird's SiteHawk General Purpose RF Test Kits provide all the necessary equipment needed to perform precise power measurements to quickly identify faulty antennas, cables, and connectors in order to resolve issues and return radio systems to service. Easily select your kit by frequency range and power range with a variety of combinations of sensors and analyzers for expanded capabilities.

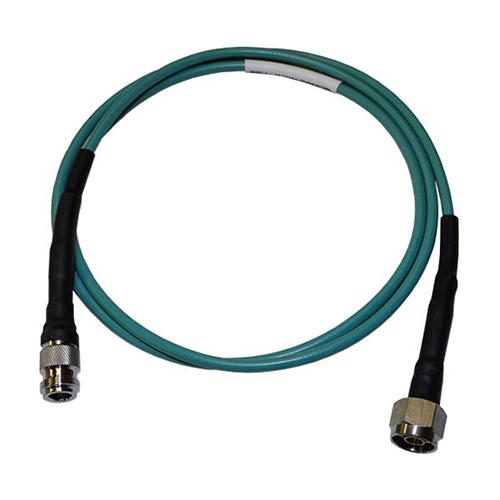

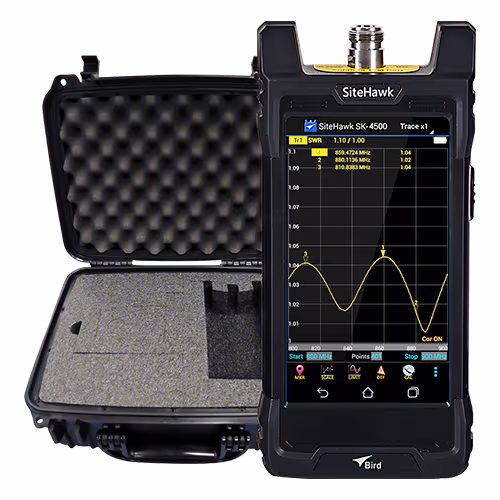

This SiteHawk General Purpose RF Test Kit (EDMO# 7003A00156) includes the SK-6000-TC Bird SiteHawk, 25-T-MN 25W RF Termination, SK-CAL-MN-C6 Calibration Combo, 4240-401 Adapter Kit, 10' RG142 RF Cable, Hard Carrying Case

Features

Utilize the Measure/Match function to sweep your system to determine how well your components are matched to 50 ohms
Use the Distance to Fault (DTF) to display RF return loss or VSWR data versus distance. Allows quick identification of poor connections, damaged cables, or faulty antennas
Multiple models available utilizing Bird power sensors with varying frequency and power ranges in order to select the model best suited to the application

Also Purchased

Specifications

Weight:

1.98 lb (0.9 kg)
Dimensions:

7.7 x 3.6 x 2.4 in (195 x 90 x 60 mm)
Frequency Range:

1 MHz to 6000 MHz
Frequency Resolution:

1 kHz
Output Power:

-10 dBm, typical
Trace Noise Magnitude (IFBW 1kHz):

0.05 dB rms
Measurement Speed:

1 ms/data point
Measurement Points:

51 to 3201
Measure Bandwidth:

100 Hz to 30 kHz
Operating Temperature:

14 °F to 131 °F (-10 °C to 55 °C)
Storage Temperature:

-40 °F to 176 °F (-40 °C to 80 °C)
Battery Charging Temperature:

32 °F to 95 °F (0 °C to 35 °C)
Temperature Stability:

0.01 dB/°F (0.02 dB/°C)
Return Loss Measurement Range:

0 dB to -60 dB
Resolution:

0.01 dB
VSWR Measurement Range:

1.0 to 65.0
Cable Loss Measurement Range:

0 dB to 30 dB
DTF Range:

0 to 5000 ft (0 to 1500 m)
Corrected Directivity:

> 38 dB
Maximum Input Voltage:

50 V
Immunity to Interfering Signals:

+13 dBm
Frequency Accuracy:

±2.5 ppm @25 °C
Reflect Amplitude Accuracy:

-10 dB to 0 dB: ±0.6 dB -20 dB to -10 dB: ±0.8 dB -35 dB to -20 dB: ±3.0 dB
Connector:

USB Type-C, USB 3.0
Test Port Connector Impedance:

N Female, 50 ohms
Display:

5.5 in, 720p
Languages:

English, Chinese, Spanish
Battery Type:

Lithium-ion rechargeable
Battery Operating Time:

10 hours (typical)
Battery Charge Time:

5 hours (typical)
Storage Capacity:

Thousands of trace and setups
Recommended Calibration Interval:

3 years
