4314C PEP RF Wattmeter | 450 kHz – 1.2 GHz, 100 mW – 10 kW

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # BIRD 4314C

MFR Part # 4314C

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

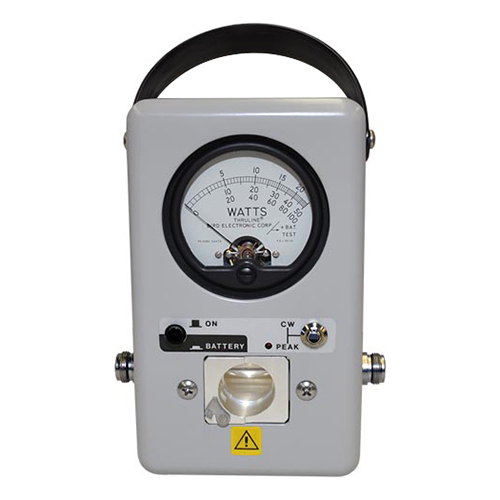

The 4314C PEP RF Wattmeter is similar to the model 43 Thruline Wattmeter but also contains electronic circuitry to accurately measure peak envelope power which is present in amplitude modulated signals such as AM broadcast, single sideband and analog TV. The circuitry operates from 2 standard 9V alkaline batteries or an optional A.C. adapter.

Features

Insetion-type instrument designed to measure both forward and reflected CW power in coaxial transmission lines under any load condition
Full-scale accuracy of ±5%
QC (quick change) type connectors
Full range of plug-in elements provide a wide choise of frequency ranges and power levels
Measures power as it is being delivered to the load; allows the power meter to be kept in the circuit as the load is active
Rugged metal housing for the most demanding environments
Remote installation with removable RF line section
High directivity and accuracy measurements needed for exceptional system performance

Specifications

Weight:

3 lbs (1.4 kg)
Dimensions:

6.875 x 5.125 x 3.625 in (175 x 130 x 92 mm)
Power Range:

100 mW to 10 kW using Bird Plug-in Elements
Frequency Range:

450 kHz to 1.2 GHz (depending on element)
Insertion VSWR:

with N Connectors 1.05 max to 1000 MHz
Accuracy:

± 5% of full scale CW, ± 8% PEP
Pulse Parameter:

(min.) Pulse width 0.4 µs (100-2300 MHz) 1.5 µs (26-99 MHz) and 15 µs (2-25 MHz) repetition rate 30 pps and duty factor 1 x 104 min
Connectors:

QC Type (Female N normally supplied)
Power:

120 VAC, 60 Hz or 220 VAC, 60 Hz (using Bird adapters)
Battery:

Two 9-Volt Alkaline Transistor Batteries
Finish:

Light Gray Powder Coat
