FlightHawk Aviation RF & Antenna Analyzer | Basic Kit

BIRD ELECTRONICS

Call For Pricing

Available to order

EDMO # FH-AVBASIC

MFR Part # FH-AV-BASIC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The FlightHawk™ RF Aviation Basic Test Kit offers rapid and accurate testing of multiple antenna cable systems in complex airframe systems. This cable and antenna analyzer allows maintenance technicians with commissioning, maintaining, and faulting-finding of ground-to-air radios, airborne radios, repeaters, antennas, antenna combiners and transmission cables. The FlightHawk Basic's easy-to-software makes it simple for maintenance personnel to verify all radio systems in a fleet. The Frequency Domain Reflectometer (FDR) function tests and verifies antenna cables in the antenna systems in both individual and complete systems.

Features

Kit Includes:

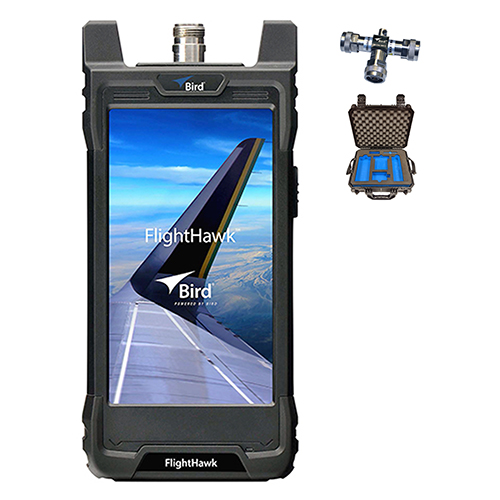

FlightHawk-AV, Cable and Antenna Analyzer
SK-CAL-MN-C6, Calibration Combo
Hard Carrying Case
Features:
Test RF cables & antennas at the frequency of operation
Locate RF cable, connector & antenna problems at the source
FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs
Fault location or DTF mode plots VSWR or Return Loss levels at each distance point along the cable and antenna system length
Cable Loss function measures insertion loss of the cable system over a given frequency range
OTG USB communication port for connection to Bird power sensors, storage devices and battery charging
Aviation RF Cable & Antenna Analyzer
FDR trace of precision return loss vs. frequency
Return loss vs. distance
Voltage standing wave ratio( VSWR)
Cable loss and distance-to-fault (DTF) measurements

Specifications

Weight:

1.98 lb (0.9 oz)
Dimensions:

7.7 x 3.6 x 2.4 in (195 x 90 x 60 mm)
Temperature:

14 °F to 131 °F (-10 °C to 55 °C), operating -40 °F to 176 °F (-40 °C to 80 °C), storage
Battery Charging Temperature:

32 °F to 95 °F (0 °C to 35 °C)
Display:

5.5 in @ 720p
Supported Languages:

English, Chinese, Spanish
Battery Type:

rechargeable lithium-ion
Battery Operating Time:

10 hr, typical
Battery Charge Time:

5 hr, typical
Storage Capacity:

thousands of trace and setups
Recommended Calibration Interview:

2 years
Connector Type:

USB type-C, USB 3.0
Test Port Connector:

N-type, female @ 50Ω
Frequency Range:

1 MHz — 6,000 MHz (at 1 KHz resolution)
Output Power:

-10 dBm, typical
Trace Noise Magnitude (IFBW 1kHz):

0.05 dB, rms
Measurement Speed:

1 ms/datapoint
Measurement Points:

51 — 3,201
Measurement Bandwidth:

100 Hz — 30 KHz
Temperature Stability:

0.01 dB/°F (0.02 dB/°C)
Return Loss Measurement Range:

0 dB to -60 dB
Resolution:

0.01 dB
VSWR Measurement Range:

1.0 to 65.0
Cable Loss Measurement Range:

0 dB to 30 dB
DTF Range:

0 ft — 5,000 ft (0 m — 1,500 m)
Corrected Directivity:

> 38 dB
Maximum Input Voltage:

50V
Immunity to Interfering signals:

+13 dBm
Power Measurement:

yes
