133 Digital Multimeter | Manual-Ranging

133 Digital Multimeter | Manual-Ranging

TEST PRODUCTS INTERNATIONAL (TPI)

Call For Pricing
Available to order
EDMO # TPI-133
MFR Part # 133
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

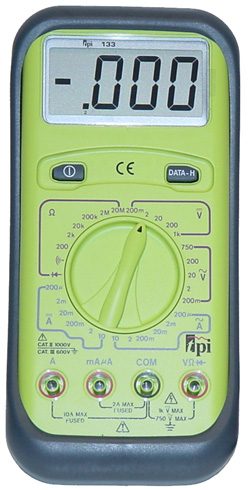

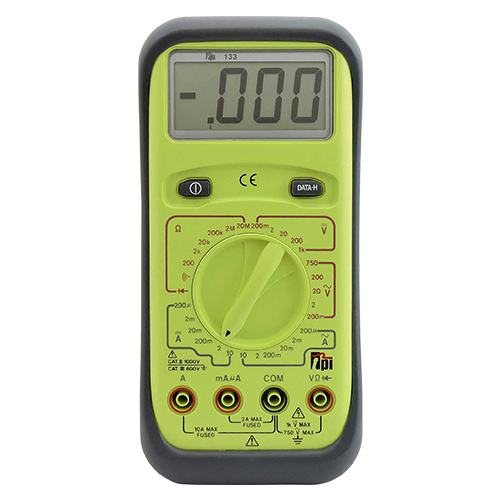

The 133 (EDMO# TPI-133) is a handheld manual-ranging digital multimeter that features extra large numerals on the LCD, and Data Hold for all functions and ranges. This meter is an affordable choice offering measurements in all of the basic electrical functions.

Features

  • Large easy to read 2,000 count display
  • 0.5% DCV basic accuracy
  • 0 to 750 ACV; max resolution 1mV
  • 0 to 1,000 DCV; max resolution 0.1mV
  • 0 to 20MΩ; max resolution 0.1Ω
  • 0 to 10 amps AC/DC; 0.1uA resolution
  • Data Hold
  • cULus 61010-1
  • CAT II – 1000V, CAT III – 600V

Specifications

  • Weight:
    12 oz (340 g) with boot
  • Dimensions:
    7.4 x 3.4 x 1.2 in (187 x 86 x 33 mm) with boot
  • DC Volts:
    Maximum Input: 1000 V Maximum Resolution: 0.1 mV Basic Accuracy: ± 0.5%
  • AC Volts:
    Maximum Input: 750 V Maximum Resolution: 0.1 mV Basic Accuracy: ± 0.8%
  • DC Amps:
    Maximum Input: 10 A Maximum Resolution: 0.1 μA Basic Accuracy: ± 0.5%
  • AC Amps:
    Maximum Input: 10 A Maximum Resolution: 0.1 μA Basic Accuracy: ± 0.75%
  • Resistance:
    Maximum Input: 40 MΩ Maximum Resolution: 0.1 mΩ Accuracy: ± 0.05%
  • Frequency:
    N/A
  • Capacitance:
    N/A
  • Inductance:
    N/A
  • Temperature (K-Type Thermocouple):
    N/A
  • Continuity:
    Audible at less than 100 Ω
  • Diode:
    2.5 V at 1 mA maximum output
  • Duty Cycle:
    N/A
  • True RMS Responding:
    No
  • Conductance:
    No
  • Pulse Width:
    No
  • Data Hold:
    Yes
  • Min/Max Record:
    No
  • Time Stamp Logging:
    No
  • Relative Mode:
    No
  • Compare Mode:
    No
  • RS-232 Output:
    No
  • Process Loop Output:
    No
  • Sleep Mode/Auto Off:
    No
  • Protective Boot:
    Yes (Standard)
  • Display Type:
    4000 count LCD
  • Range Selection:
    Auto/Manual
  • Operating Temperature:
    32º to 104ºF (0º to 40ºC)
  • Storage Temperature:
    14º to 122ºF (-10º to 50ºC)
  • Relative Humidity:
    80% non-condensing
  • Battery Type:
    9 V Alkaline (NEDA 1604)
  • Battery Life:
    500 hrs Typical
  • Over Input Category:
    CAT III 600V
  • Agency Approval:
    cULus 61010-1, IEC 61010-1
  • Warranty:
    3 Years

Product Codes

  • Mfr Part No
    133
  • SCHEDULE B CODE
    9025.19.8080
