TPI-3000A Universal Coaxial Adapter Kit

TPI-3000A Universal Coaxial Adapter Kit

TEST PRODUCTS INTERNATIONAL (TPI)

Call For Pricing
In stock
EDMO # TPI-3000A
MFR Part # TPI-3000A
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

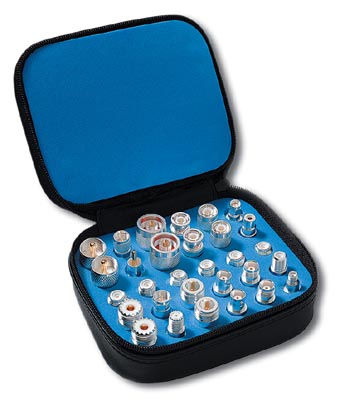

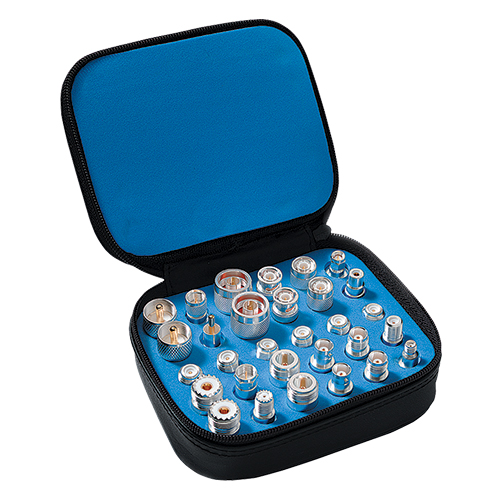

The TPI-3000A universal coaxial adapter kit (EDMO# TPI-3000A) contains connectors commonly found in a wide range of applications, including communications, instrumentation, and networks: BNC, F, N, SMA, TNC, UHF, Mini-UHF, and RCA. The connectors in the kit can also be used with TPI Universal Cables to build custom patch and test cables, have silver-plated brass bodies with gold-plated phosphor bronze contacts, and are housed in a foam-lined soft case.

Features

  • Includes 8 types of connectors for male and female adapters
  • Simply screw on any combination of 24 connectors to any of the six universal interfaces with no soldering or crimping needed
  • Reusable connectors can be used over and over in different combinations to fit and assist customizing the installation
  • Works with universal cables GEX-60 (36″), GEX-48 (48″), and GEX-75 (72″)
  • Connector bodies are silver-plated machine brass with PTFE insulation
  • Zippered soft case protects and organizes the individual pieces
  • Kit Includes:
  • TPI 3001 Universal Interface (6 each)
  • TPI-3002 BNC Male (2 each)
  • TPI-3003 BNC Female (2 each)
  • TPI-3004 F Male (1 each)
  • TPI-3005 F Female (1 each)
  • TPI-3006 N Male (2 each)
  • TPI-3007 N Female (2 each)
  • TPI-3008 SMA Male (2 each)
  • TPI-3009 SMA Female (2 each)
  • TPI-3010 TNC Male (2 each)
  • TPI-3011 TNC Female (2 each)
  • TPI-3012 UHF Male (2 each)
  • TPI-3013 UHF Female (2 each)
  • TPI-3014 Mini UHF Male (1 each)
  • TPI-3015 Mini UHF Female (1 each)
  • TPI-3020 RCA Male (1 each)
  • TPI-3021 RCA Female (1 each)

Specifications

  • BNC Impedance:
    50 Ω
  • BNC Frequency Range:
    DC – 3 GHz
  • BNC Voltage:
    500 Vrms
  • BNC VSWR:
    < 1.4:1
  • BNC Insertion Loss:
    < -0.2 dB
  • F Impedance:
    50 Ω
  • F Frequency Range:
    DC – 300 MHz
  • F Voltage:
    100 Vrms
  • N Impedance:
    50 Ω
  • N Frequency Range:
    DC – 3 GHz
  • N Voltage:
    1000 Vrms
  • N VSWR:
    < 1.3:1
  • N Insertion Loss:
    < -0.2 dB
  • SMA Impedance:
    50 Ω
  • SMA Frequency Range:
    DC – 3 GHz
  • SMA Voltage:
    335 Vrms
  • SMA VSWR:
    < 1.3:1
  • SMA Insertion Loss:
    < -0.2 dB
  • TNC Impedance:
    50 Ω
  • TNC Frequency Range:
    DC – 3 GHz
  • TNC Voltage:
    500 Vrms
  • TNC VSWR:
    < 1.3:1
  • TNC Insertion Loss:
    < -0.2 dB
  • UHF Impedance:
    Non Constant
  • UHF Frequency Range:
    DC – 300 MHz
  • UHF Voltage:
    500 Vrms
  • Mini UHF Impedance:
    50 Ω
  • Mini UHF Frequency Range:
    DC – 2.5 GHz
  • Mini UHF Voltage:
    335 Vrms
  • Mini UHF VSWR:
    < 1.25:1
  • Mini UHF Insertion Loss:
    < -0.2 dB
  • RCA Impedance:
    50 Ω
  • RCA Frequency Range:
    DC – 300 MHz
  • RCA Voltage:
    100 Vrms
  • Universal Interface Impedance:
    50 Ω
  • Universal Interface Frequency Range:
    DC – 3 GHz
  • Universal Interface Voltage:
    1000 Vrms
