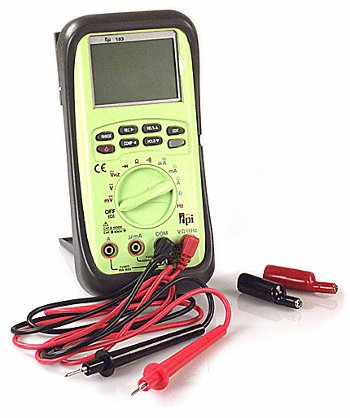

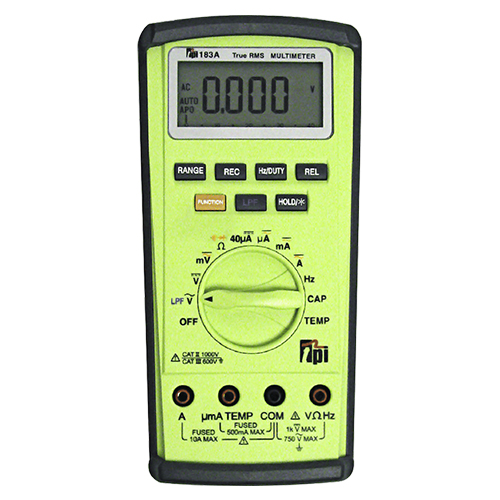

183A Digital Multimeter | Auto-Ranging

Product Description

The 183A (EDMO# TPI 183A) is a handheld auto-ranging digital multimeter that measures ACV, DCV, ACA, DCA, Resistance, Frequency, Duty Cycle, Diodes, Capacitance, Temperature and Continuity. This meter is designed to be easy to use and built to last.

Specifications

• Weight:
  12 oz (340 g) with boot
• Dimensions:
  7.4 x 3.4 x 1.3 in (187 x 86 x 33 mm)
• DC Volts:
  Maximum Input: 1000 V Maximum Resolution: 0.01 mV Basic Accuracy: ± 0.5%
• AC Volts:
  Maximum Input: 750 V Maximum Resolution: 0.01 mV Basic Accuracy: ± 1.5%
• DC Amps:
  Maximum Input: 10 A Maximum Resolution: 0.01 μA Basic Accuracy: ± 0.8%
• AC Amps:
  Maximum Input: 10 A Maximum Resolution: 0.01 μA Basic Accuracy: ± 1.2%
• Resistance:
  Maximum Input: 40 MΩ Maximum Resolution: 0.1 mΩ Accuracy: ± 0.05%
• Frequency:
  Maximum Input: 10 MHz Maximum Resolution: 0.01 Hz Accuracy: ± 0.05%
• Capacitance:
  Maximum Input: 4000 µF Maximum Resolution: 0.01 nF Accuracy: ± 3%
• Temperature (K-Type Thermocouple):
  Maximum Input: 2372ºF (1300ºC) Maximum Resolution: 0.1ºF/ºC Accuracy: ± 2%
• Continuity:
  Audible at less than 30 Ω
• Diode:
  2.7 V at 1 mA maximum output
• Duty Cycle:
  Range: 0.1 to 99.9% Accuracy: ± (0.1% + 0.05%/KHz) + 1 count
• True RMS Responding:
  Yes
• Conductance:
  No
• Pulse Width:
  No
• Data Hold:
  Yes
• Min/Max Record:
  Yes
• Time Stamp Logging:
  No
• Relative Mode:
  Yes
• Protective Boot:
  Yes (Standard)
• Display Type:
  4000 count LCD, 2 times per second update
• Range Selection:
  Auto/Manual
• Operating Temperature:
  32º to 104ºF (0º to 40ºC)
• Storage Temperature:
  14º to 122ºF (-10º to 50ºC)
• Relative Humidity:
  0% to 80%
• Battery Type:
  9 V Alkaline
• Battery Life:
  200 hrs Typical
• Over Input Category:
  CAT III 600V
• Agency Approval:
  cULus 61010-1, IEC 61010-1
• Warranty:
  3 Years

Product Codes

• Mfr Part No
  183A
• ECCN
  EAR99
• SCHEDULE B CODE
  9030.31.0000
