PIDG Quick Disconnect Receptacle | Series 110, 22 – 18 AWG, Straight Mount

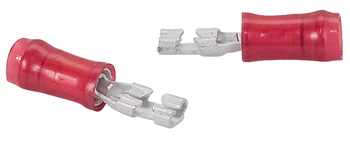

RECEPTACLE/Female, insulated, red, 300 VAC, PIDG series. Stud/tab size: 2.79 mm X .51 mm. For use with 22-18 gauge wire.

TE CONNECTIVITY

EDMO#: 640923-1

MFR#: 6409231

Description

The series 110 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.


This PIDG quick disconnect receptacle (EDMO# 640923-1) has a straight connector, fits 22 – 18 AWG wire, and has a red insulation color.

Features

  • Fits within confined spaces
  • Low insertion force provides increased comfort
  • Meets UL 310 & CSA C22.2 No. 153 requirements

Specifications

Dimensions:
20.32 x 4.06 mm

Color:
red

Contact Material:
tin-plated brass

Insulation:
nylon

Mounting Angle:
straight


Mounting Style:
push in

Product Type:
quick disconnect terminal

Product Series:
110 Faston

Stud / Tab Size:
2.79 x 0.51 mm

Termination Style:
crimp

Voltage Rating:
300V

Wire Gauge:
22 – 18 AWG

Product Codes

Mfr Part No :

6409231

CSA :

FILE # LR7189

ECCN :

EAR99

NSN :

5940-01-356-8765

SCHEDULE B CODE :

8536.90.4000

UL :

E66717

Documentation
